CHOOSING THE RIGHT SIZE BIKE
You should choose the size of your bike based on your height, as well as your build (arm span and leg length).
If you are between sizes, the smaller size will give you a more athletic position, while the larger size will give you a more comfortable position.
XS 155 165 cm
S 165 173 cm
M 173 182 cm
L 182 190 cm
XL 190 200 cm
Frame
Comfort-oriented frame geometry with a higher steering socket and a shorter top tube that offers a more upright position than a classic road frame.
6061 T6 aluminium sloping frame with semi-integrated headset. Frame weight, size M: 1830 g
Fork
Carbon fork that is more lightweight and offers more precise directional control.
Aheadset 1"1/8 steerer tube makes the steering assembly strong and rigid.
Inserts in the fork to fit a pannier rack. Maximum load on the fork: 9 kg
Handlebar / stem / steering
Ergonomic aluminium Triban flat handlebars for a better grip and excellent comfort.
Grip with integrated fixing ring
Handlebar width (axle-to-axle):
XS / S / M : 560 mm.
L / XL : 600 mm.
Triban forged stem:
XS : 70 mm
S: 80 mm
M: 90 mm
L: 100 mm
XL: 110 mm
Drivetrain
High-precision, sturdy Microshift 8-speed shifter inner routine.
Very comfortable design: the shifter is easy to operate regardless of hand size. Front Microshift derailleur and high-precision Microshift rear derailleur

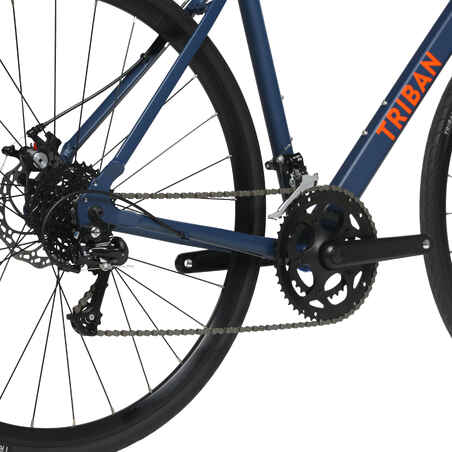

Crankset / cassette
Microshift CS-H081 11-34 cassette
(11/13/15/18/21/24/28/34)
Aluminium Triban crankset double chainring 50/34.
170mm crank arm length

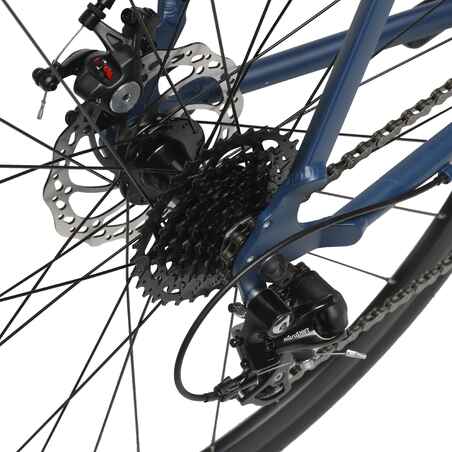

Brakes
Promax DSK-300R disc brakes.
160mm disc brakes at front and rear
JAGWIRE anti-compression housing to ensure braking precision and efficiency
Semi-metal pad
Wheels
Triban Tubeless ready* wheels
6061T6 aluminium
ETRTO dimensions: 622 x 17 C
28mm high for greater lateral rigidity
Crossed stainless thread lock spokes to improve rigidity (28 front and 28 rear)
*Conversion kit required, including 2 tubeless valves + 2 rim strips + bottle of anti-puncture liquid
Tyres
Triban protect: 700 x 28 Skin Wall puncture protection
Saddle / Seat post
New Triban ErgoFit saddle. Hammock design for greater comfort. Aluminium Triban seat post. Easy saddle adjustment
Diameter: 27.2mm.
Length: 350mm in M / L / XL, 250mm in XS / S
Pedals
Metal cage pedals with toe clips
Accessories / equipment
Bike supplied with bell, front, rear and wheel reflectors
Weight
11.25kg in size M without pedals
