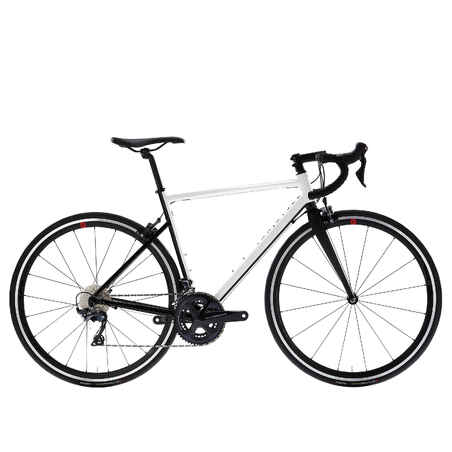

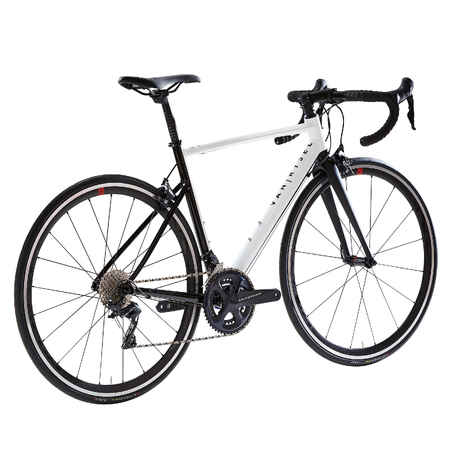

Frame
New Van Rysel aluminium frame (AF) with variable thickness to lighten the frame as much as possible.
Aluminium is the perfect material for getting a good balance of propulsion and comfort.

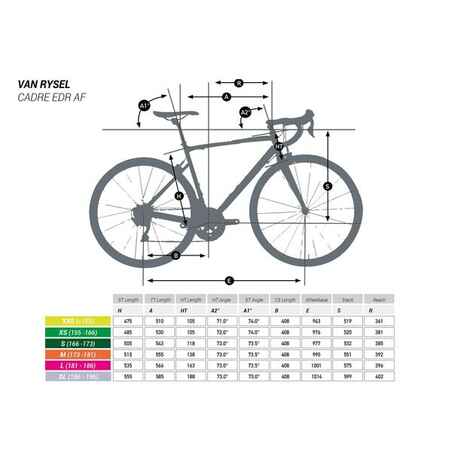

The frame has an endurance geometry (EDR) which allows you to tackle long distances with maximum comfort.
We have chosen to leave the cables on the outside of the frame for easier maintenance and replacement of cables and housings.
The frame is UCI-approved
Fork
Carbon and aluminium Van Rysel fork.
A perfect choice for precision steering and performance at a reasonable price.
Simple pivot brake for a biting brake.
Frame weight: 1450 to 1470g in size M
Fork weight: 640g in size M
Drive train
Shimano Ultegra R8000 11-speed drivetrain

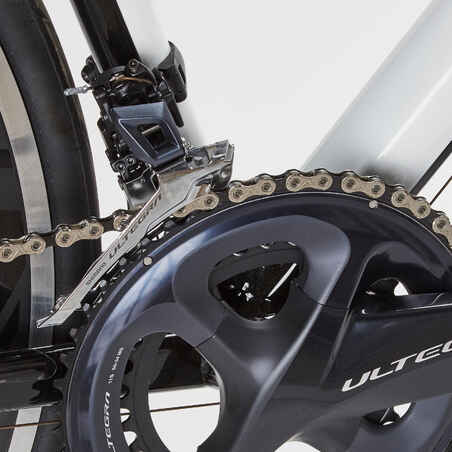

Shimano Ultegra R8000 double front derailleur.

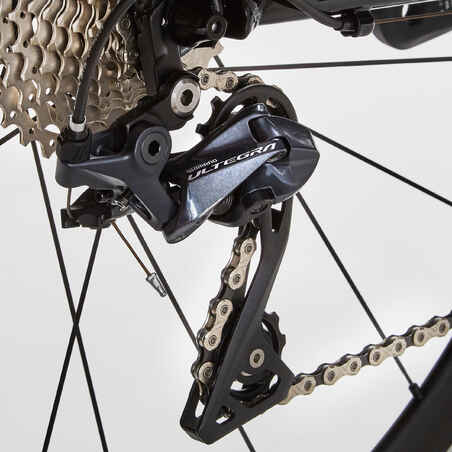

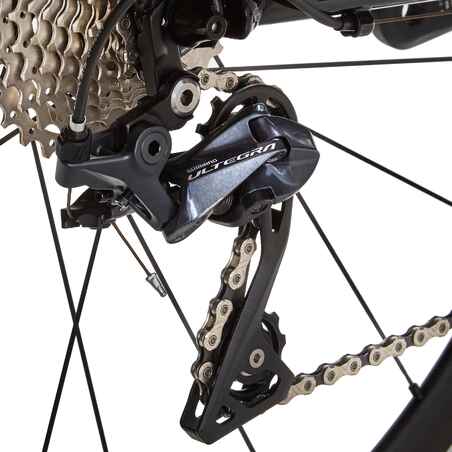

Shimano Ultegra R8000 GS 11-speed rear derailleur.
Shimano Ultegra double compact bottom bracket.
Crankset / cassette
Shimano Ultegra R8000 50x34 bottom bracket.
Crank length varies according to size of bike: S: 170mm
M: 172.5mm
L: 175mm
Shimano Ultegra 11S 11x32 cassette
( 11/12/13/14/16/18/20/22/25/28/32)
WHEELS
Fulcrum Racing 4 aluminium wheels, 1725g per pair.
These aero wheels have a 35mm high profile and are extremely versatile
Rim with 17C internal width
23mm width can accommodate tyres from 25 to 50mm. The frame is approved for tyres up to 28 mm.
Aero spokes
Aluminium hub
TYRES

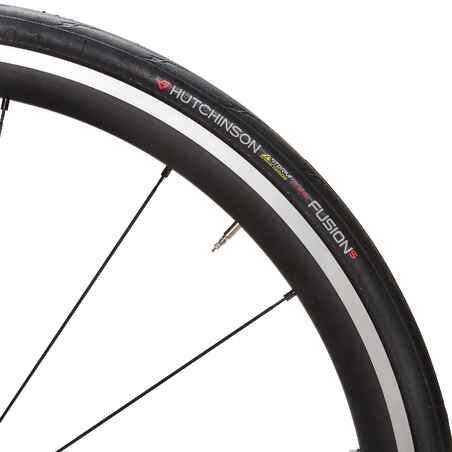

Hutchinson Fusion 5
A compromise between lightness and robustness thanks to its Kevlar® reinforcement.
Rubber concept HDF>5.2® that combines grip and robustness (5.1 = pure performance, 5.3 = robustness)
Approximate tyre weight 190 gr
Flex bead
BRAKES

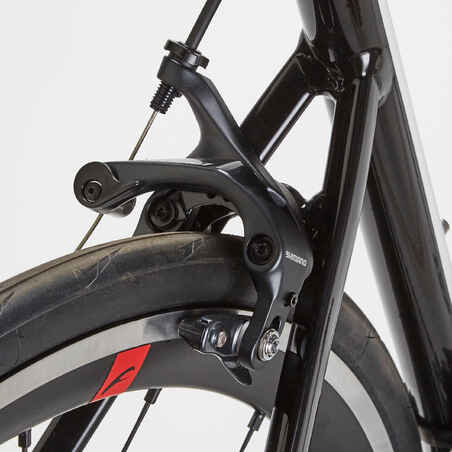

Shimano Ultegra R8000 brakes

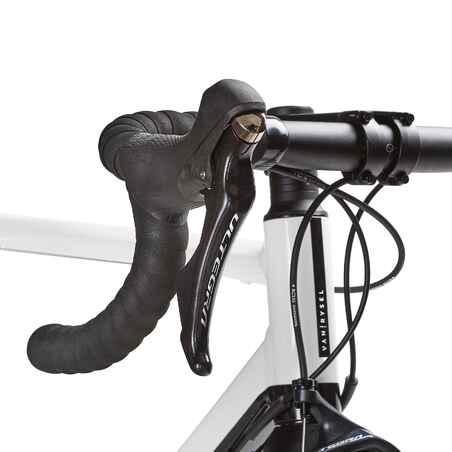

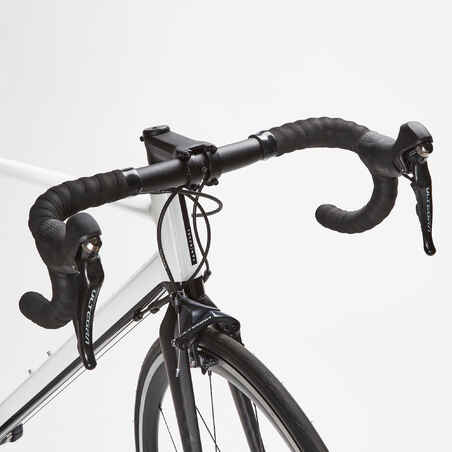

Handlebar / stem / steering

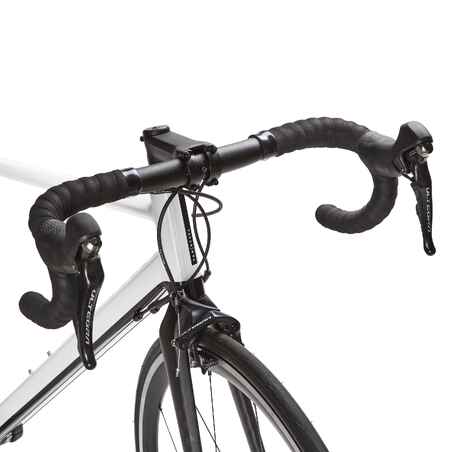

The compact 6061 T6 aluminium VanRysel handlebar is sized to the bike.
The handlebar weighs 320 g in size 420 mm.
End-end width: XS, S 400mm.
M, L 420mm.
XL 440mm.

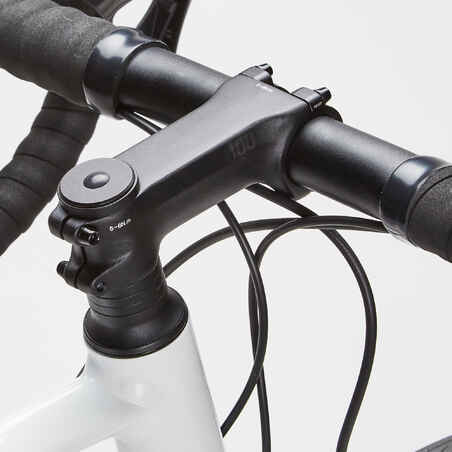

VR oversize aluminium stem
Weight of 140g in size 110mm.
Length
XS 80mm
S 90mm
M 100mm
L 110mm
XL 120mm
Sealed bearings; diameter is 1 1/8" at the top and 1 1/4" at the bottom.
Saddles / Seat Post

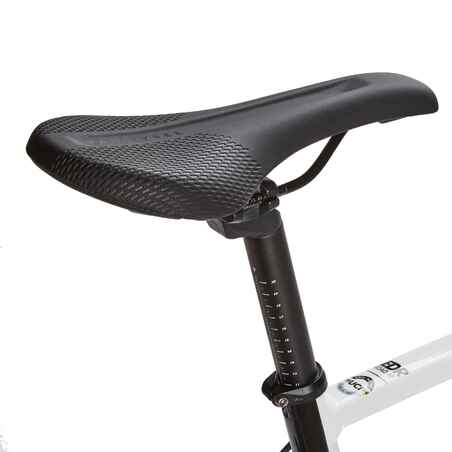

VanRysel Sport 900 saddle, chosen for its comfort and efficiency.
Weight: 257g.
VanRysel racing aluminium seat post.
Diameter: 27.2mm.
Length: 350mm.Weight: 240g.
PEDALS
Pedals not included.
Accessories
Comes with front and rear-lighting kit and bell.Comes with a torque spanner to ensure the recommended torques and adjustments
Weight
8.600 kg in size M, without pedals.
Warranty
Lifetime warranty on the frame, 2 years on the fork, 2 years on peripheral components.
WHAT IS THE MAXIMUM TYRE SIZE YOU CAN FIT?
The frame and fork are compatible with tyres with a maximum size of 700 x 28mm
