WHAT SIZE MOUNTAIN BIKE TO CHOOSE?
Several sizes available:
S: between 1.50m and 1.64m
M: between 1.65m and 1.74m
L: between 1.75m and 1.84m
XL: between 1.85 m and 2.00 m
If you are on the limit between 2 sizes:
Choose the smaller size for easier steering (easier to handle) and comfort (straighter back).
Choose the larger size for easier pedalling with a more stretched-out position ( more suited to performance).
IS ELECTRIC MTB A SPORT?
You have to pedal to go forward!
The electric assistance boosts your pedalling by 320%, helping you ride over obstacles.
You'll get to enjoy longer MTB rides.
The motor stops when you stop pedalling.
The walking mode compensates for the weight of the bike when you need to put your feet down.
A WORD FROM THE TEAM

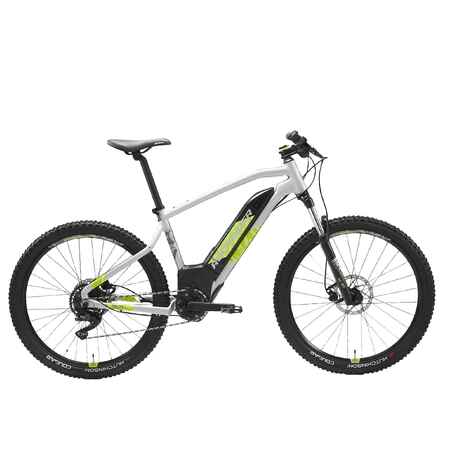

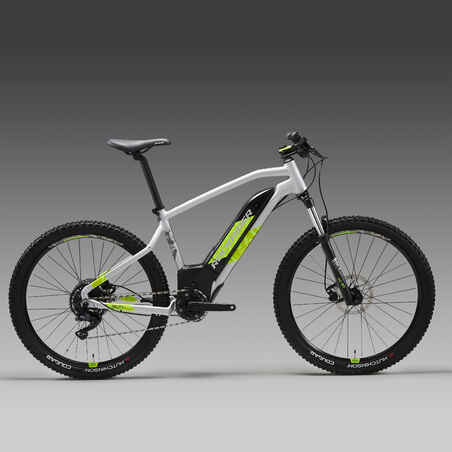

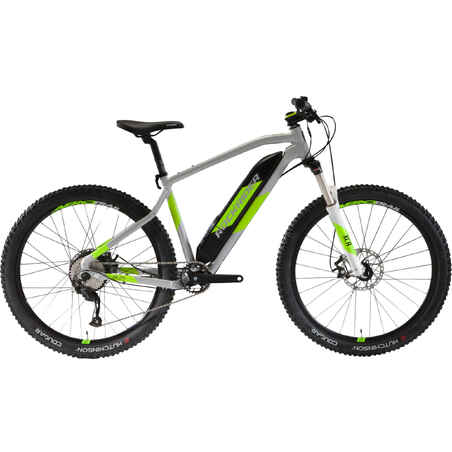

Our team of mountain bike enthusiasts created this E-ST 520 electric mountain bike entirely at our B'Twin Village in Lille, France.
We designed and tested the E-ST 520 MTB by involving MTB riders at every stage of the project.

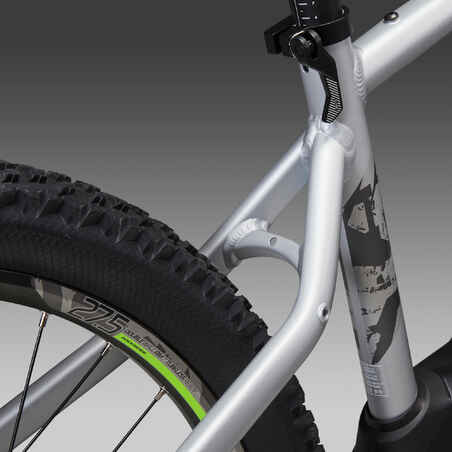

STURDY, PLAYFUL FRAME
The frame of the Rockrider E-ST 520 electric MTB is made of 6061 aluminium with hydroformed tubes. Why? The battery sits snugly on the frame to improve the robustness of this electric mountain bike.
The forged aluminium parts make it compatible with the new 27.5"+ tyre format (wider than the 27.5") in the rear, while remaining easy to manoeuvre. We've kept a frame geometry with short bases for easier steering.
MOTOR WITH 70NM TORQUE
The BROSE T Aluminium central motor is specially designed for mountain biking:
- 70 Nm torque to handle large obstacles and steep gradients
- metal housing for maximum
- belt for an ultra-quiet motor
- sealed bearings to hold up to tough while mountain biking

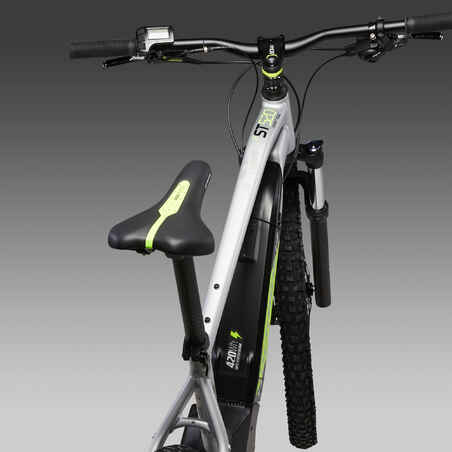

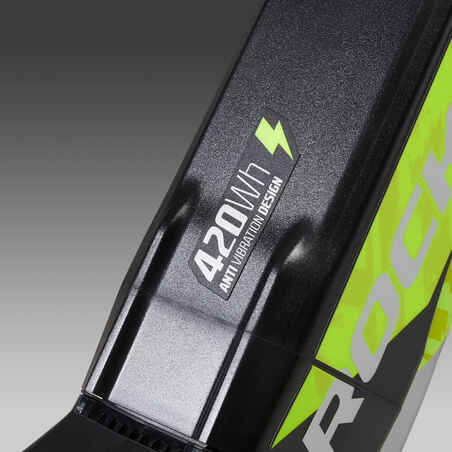

LG OR SAMSUNG BATTERY CELLS
Our battery is equipped with battery cells from LG or Samsung, (LGC-MG1 or SDI), which are known for their high level of reliability and safety.

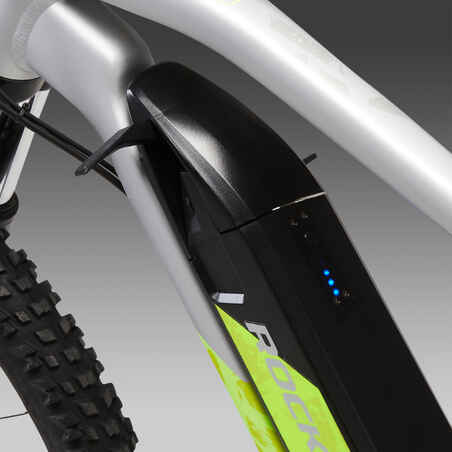

BATTERY LOCK
Our Rockrider mountain bike team has designed a battery that locks in place with a simple lever. Child's play!
This locking system prevents the battery vibrating when riding on rough terrain.
There is also a lock in case you want to stop your battery getting stolen. For example, if you park your bike in the street.

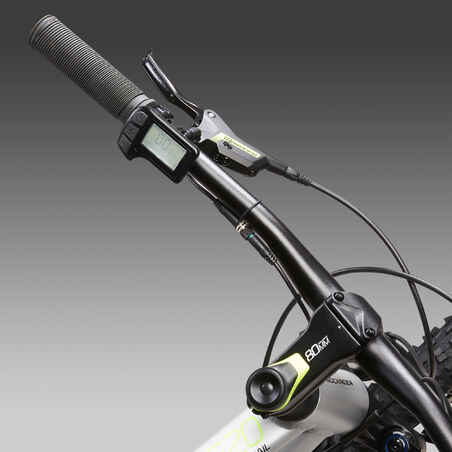

CONTROL SCREEN
A discreet LCD control screen. It is located just to the side of your left grip, so you can choose between the 3 assistance modes without letting go of the handlebars: (Deactivated), Economy, Standard, and Boost.
You'll also find a host of useful information:
-Stopwatch
-Current speed
-Average speed
-Maximum speed
-Distance covered
-Total distance
-Battery level
-Remaining battery range (in km)
-Active assistance mode
-Reset
3 ASSISTANCE MODES
Mode 0 - Deactivated
The battery is not used.
Mode 1 - Economy +60%:
Extend your rides while conserving battery life. Ideal when you want a little push on small gradients.
Mode 2 - Standard +120%:
This is the most versatile mode. Climb any slope without getting too tired and without using too much power.
Mode 3 - Boost +320%
ROCKSHOX FRONT SUSPENSION
Ride over obstacles (roots, pebbles, stones, etc.) easily thanks to the Rockshox XC30 hydraulic fork with 120 mm of travel.
This fork has:
- A coil spring for maximum sensitivity and reliability - a lockout and rebound adjustment for better control, depending on the terrain

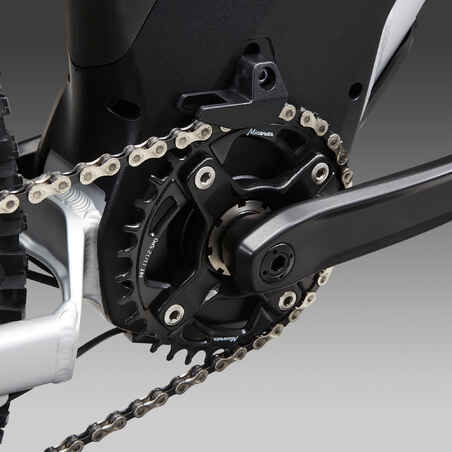

SINGLE CHAINRING DRIVETRAIN
The E-ST520 electric bike is equipped with a single chainring and ChainFlow 3D anti-slip technology to prevent the chain from derailing.
A single shifter on the right handlebar makes it easy to shift between the 9 speeds.
In detail:
-Chainflow & Anti-derailment single chainring with 34 teeth
-Microshift Advent 9-speed rear derailleur with long cage
-Microshift Advent right shifter
-Microshift H093 9-speed cassette (11 to 42 teeth)
-KMC E9 Sport electric bike specific chain
WIDE 27.5" DOUBLE-WALLED RIMS
These wheels were specially designed for this mountain bike:
- 23 mm rims (width between brackets), 28 spokes at the front and 32 spokes at the rear, for greater and good grip with wide tyres (up to 2.5").
- BOOST thru rear axle (12x148) for greater
- Aluminium hubs with sealed bearings
- TUBELESS READY rims: you will need TUBELESS tyres, specific Presta valves, and puncture sealant.
HUTCHINSON TYRES
In order for you to feel safe on any terrain, and for traction suited to your motor, the E-ST520 electric MTB is equipped with Hutchinson Cougar 27.5" tyres with a 2.4" cross-section. Our test riders particularly liked these tyres for their grip on the ground. Mounted on wide rims, these tyres provide great grip, traction, and comfort on any terrain.
HYDRAULIC DISC BRAKES
Regardless of the conditions you ride in (dry/wet/muddy), the hydraulic Tektro TKD88 disc brakes at the front and rear provide powerful and progressive braking. Oversized 180mm diameter discs provide even more power.

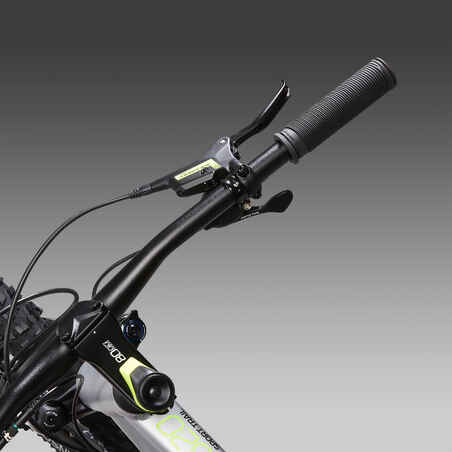

HANDLEBARS, STEM, GRIPS
The adjustable stem brings the E-ST 520 controls to your hands. The all-aluminium Rockrider stem is 70 mm (size S), 80 mm (size M/L), or 90 mm (size XL) and can be raised to 5 adjustment intervals: + 0mm, + 7.5mm, + 15mm, + 22.5mm, + 30mm.
In detail:
- 720mm oversize Rockrider Sport aluminium handlebar
- Rockrider Sport "soft touch" ergonomic grips for good grip and a comfortable feel.
Saddle
Since your mountain bike rides will get longer and longer, it is important to have a suitable seat. Our teams have designed the exclusive Rockrider Ergofit Evo saddle. It fits all hip sizes and has a curved shape that is particularly good for sport trail rides.
The 31.6 mm aluminium seat post ensures compatibility with most adjustable and suspended seat posts on the market.
Platform pedals
The bike comes with 520 Grip MTB platform pedals (ref. 8487130) with a wider pedalling surface and more pronounced dots for better grip on the pedal.However, if you are looking for improved performance when pedalling and better control of the bike when cycling, we recommend replacing them with clipless pedals with platforms or wide aluminium platform pedals.
Accessories
Your E-ST520 mountain bike is fitted with a bell, lights, wheel reflectors and pedals.
The frame is compatible with:
- front and rear mudguards
- stand
- bottle cage (on the horizontal tube)
- saddle pouch
- rear pannier rack (fixed onto the seat stays or special mounts for wide bikes, 148 mm gap for the rear wheel & 2.8" fat tire)
- child seat
...
OUR ADVICE FOR YOUR FIRST RIDES
Tip no.1
When mountain biking, there is always the risk of a fall: don't forget to wear a helmet.
Tip no. 2
A puncture could happen at any time, so always remember to take a repair kit and a 6 mm Allen key for removing your wheels.
Tip no.3
If you don't want to stop to drink, bring water in a bottle or water bladder to access it while riding.
LEGAL DISCLAIMER
To optimise of the components, we recommend a maximum load of 120 kg (rider, kit + bike).
Care advice
Leave your battery on the bike when washing using a hose. This will protect the connectors from rusting.
